Introduction

Welcome to your user guide for setting up and configuring ZenBEACONS! This guide will walk you through the process of installing the hardware and configuring your beacons using the KBeaconPro app.

Setting up a beacon involves the following simple steps:

  1. Power on the beacon.

  2. Configure the firmware using the KBeaconPro app.

  3. Mount or install the beacon for use.

Setting Up the Hardware

ZenID

  1. To power on, hold the trigger button until the button flashes blue and you hear a beeping sound.

  1. Configure the beacon firmware using the KBeaconPro app (see below).

  2. (Optional) Attach to a keychain for use.

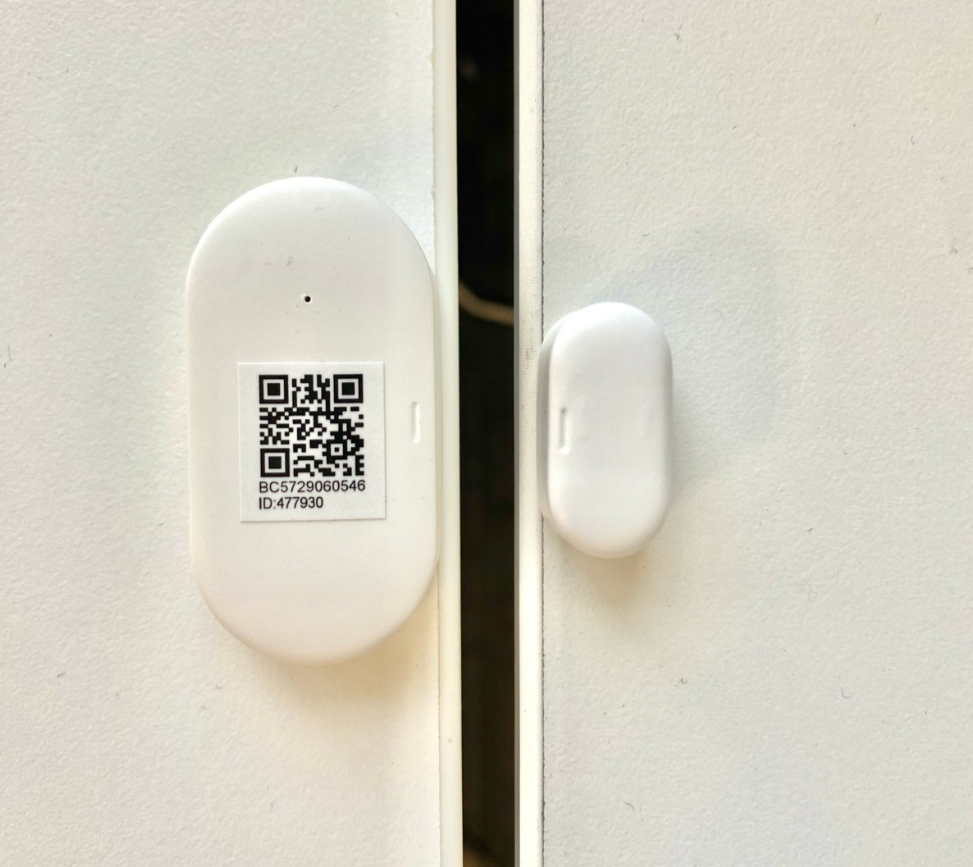

ZenDoor

  1. To power on, hold the button found at the top of the main body.

  1. Configure the beacon firmware using the KBeaconPro app (see below).

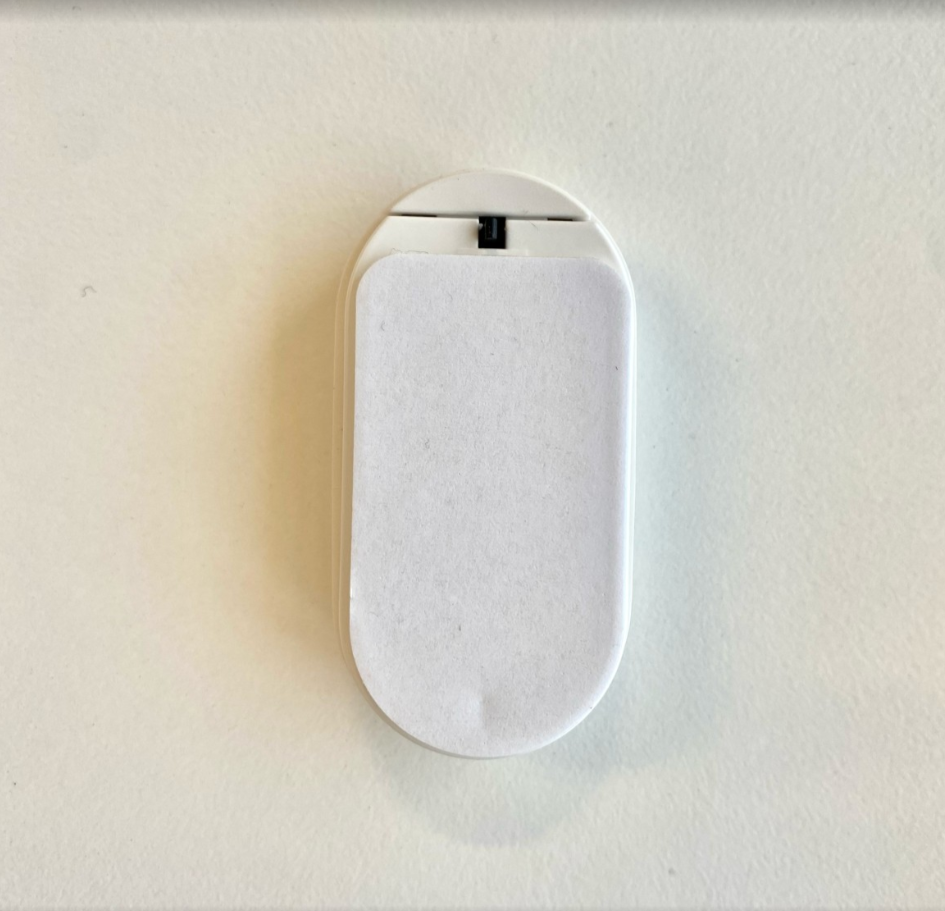

  2. Use the provided installation tape to mount the beacon on a door, ensuring that the line markings on both pieces align correctly. Avoid putting the tape over the black button on the back.

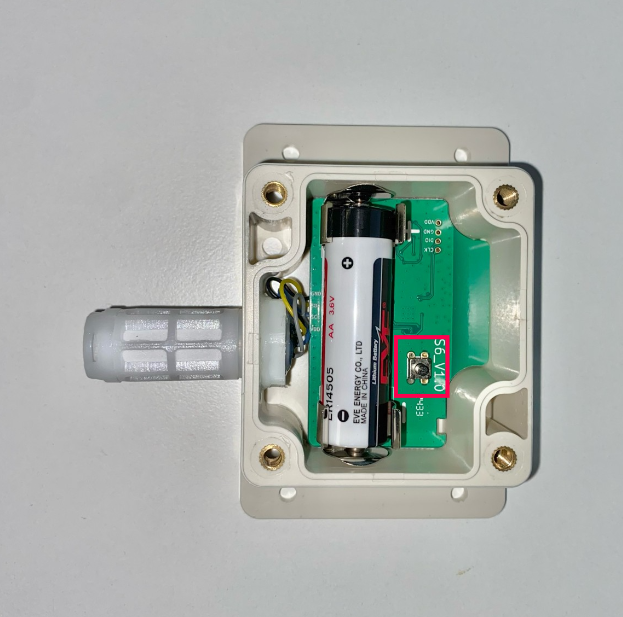

ZenTemp

  1. Unscrew the lid.

  2. Inside, hold the button to power it on.

  1. Reattach the lid.

  2. Configure the beacon firmware using the KBeaconPro app (see below).

  3. (Optional) Use screws or installation tape to mount the beacon to a flat surface.


ZenTemp+

  1. To power on, hold the button found on the back.


  1. Attach the probe to the end of the beacon.

  2. Configure the beacon firmware using the KBeaconPro app (see below).

  3. (Optional) Use screws or installation tape to mount the beacon to a flat surface.


ZenClicker

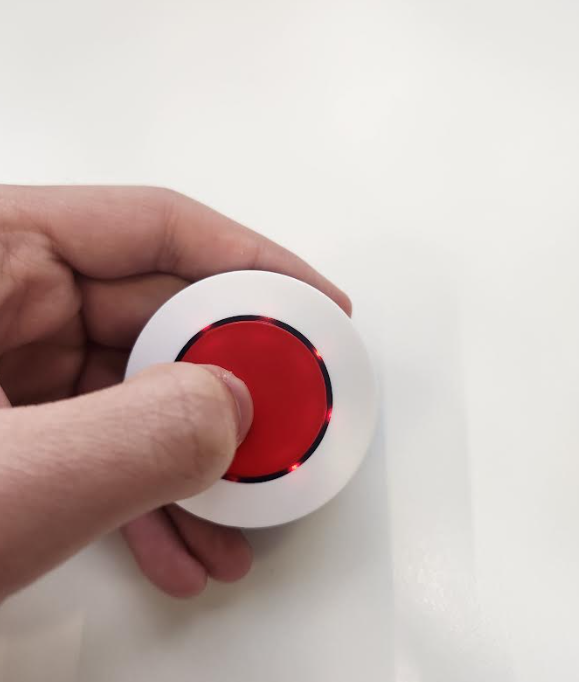

  1. To power on, hold the trigger button until the button flashes red and you hear a beeping sound.

  1. Configure the beacon firmware using the KBeaconPro app (see below).

  2. (Optional) Use installation tape to mount the beacon to a flat surface.

    1. AlertNote: The QR code is on the back, so keep this in mind when installing with tape.

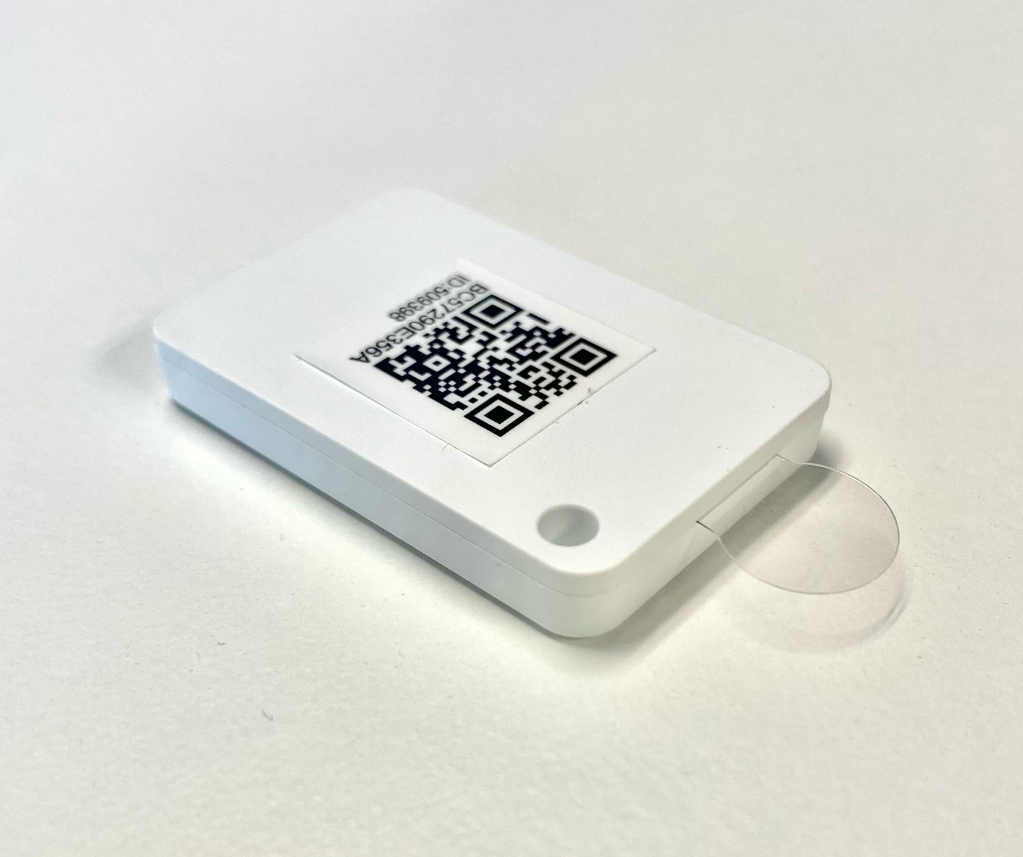

ZenMini

  1. To power on, remove the plastic film.

  1. Configure the beacon firmware using the KBeaconPro app (see below).

  2. (Optional) Attach to a keychain, or use installation tape to install on a flat surface.

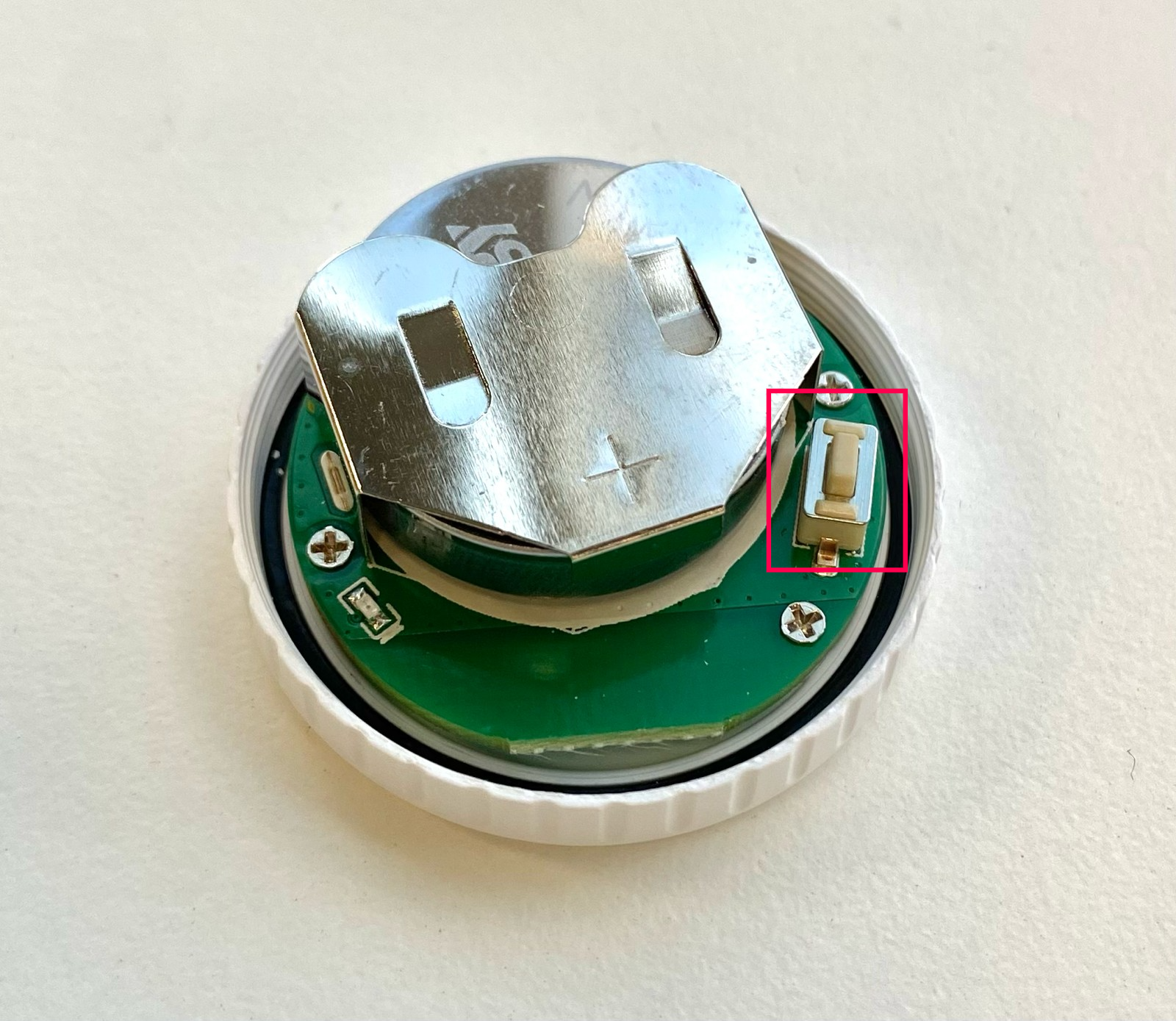

ZenGO (S5 Beacon)

  1. Unscrew the lid.

  2. Inside, hold the button to power it on.


  4. Reattach the lid.

Configuring the firmware using KBeaconPro app

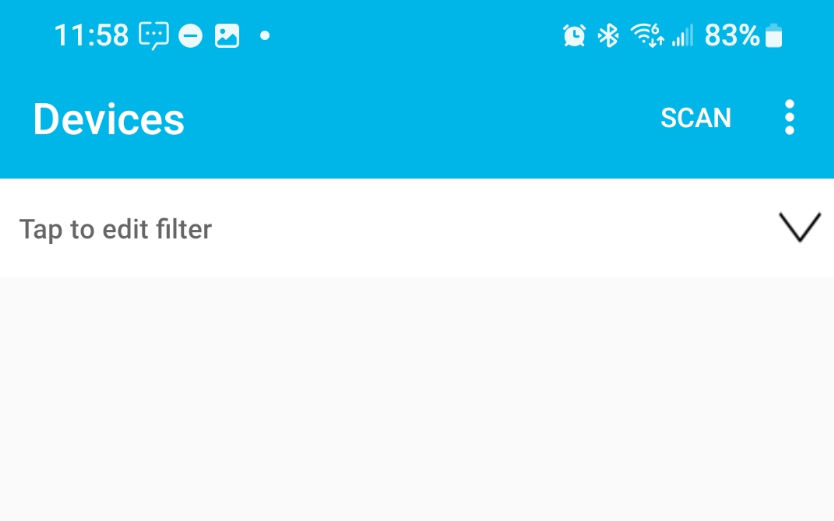

  1. Download the KBeaconPro app on the App Store or Google Play.

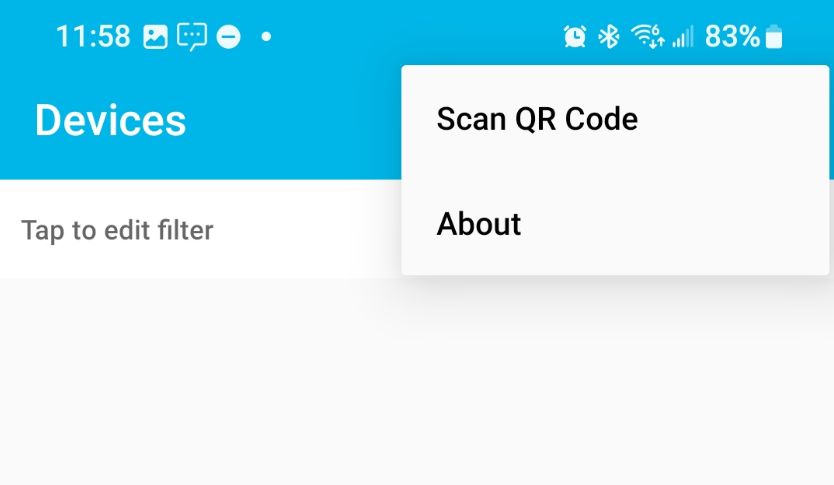

  2. Hit “+” in the top left corner, “Scan QR Code”.

  1. Use your phone camera to scan the QR code on the beacon.

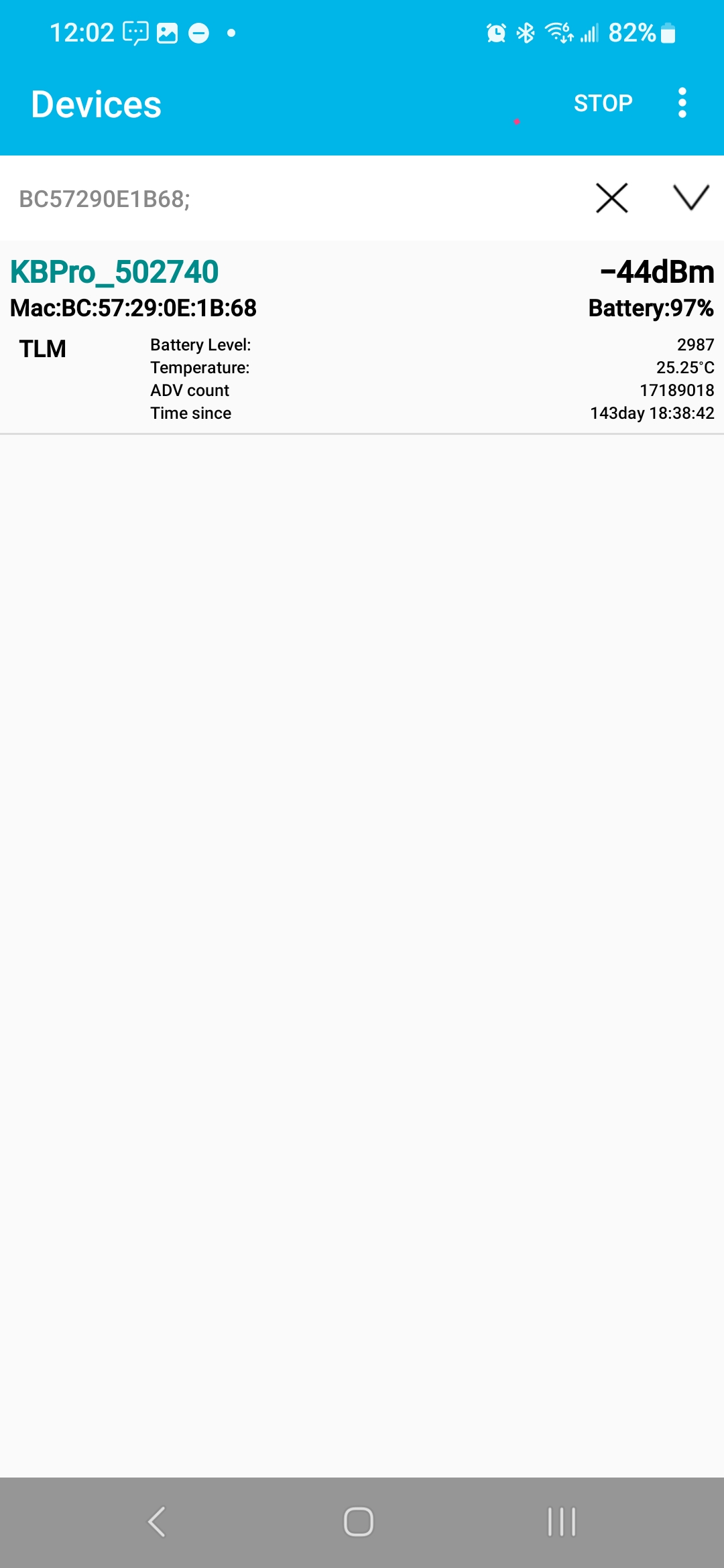

  2. The beacon should show up in the list.


    1. Notes
      You can identify it using its MAC address (e.g. BC57290E5681) or ID (e.g. 517869)

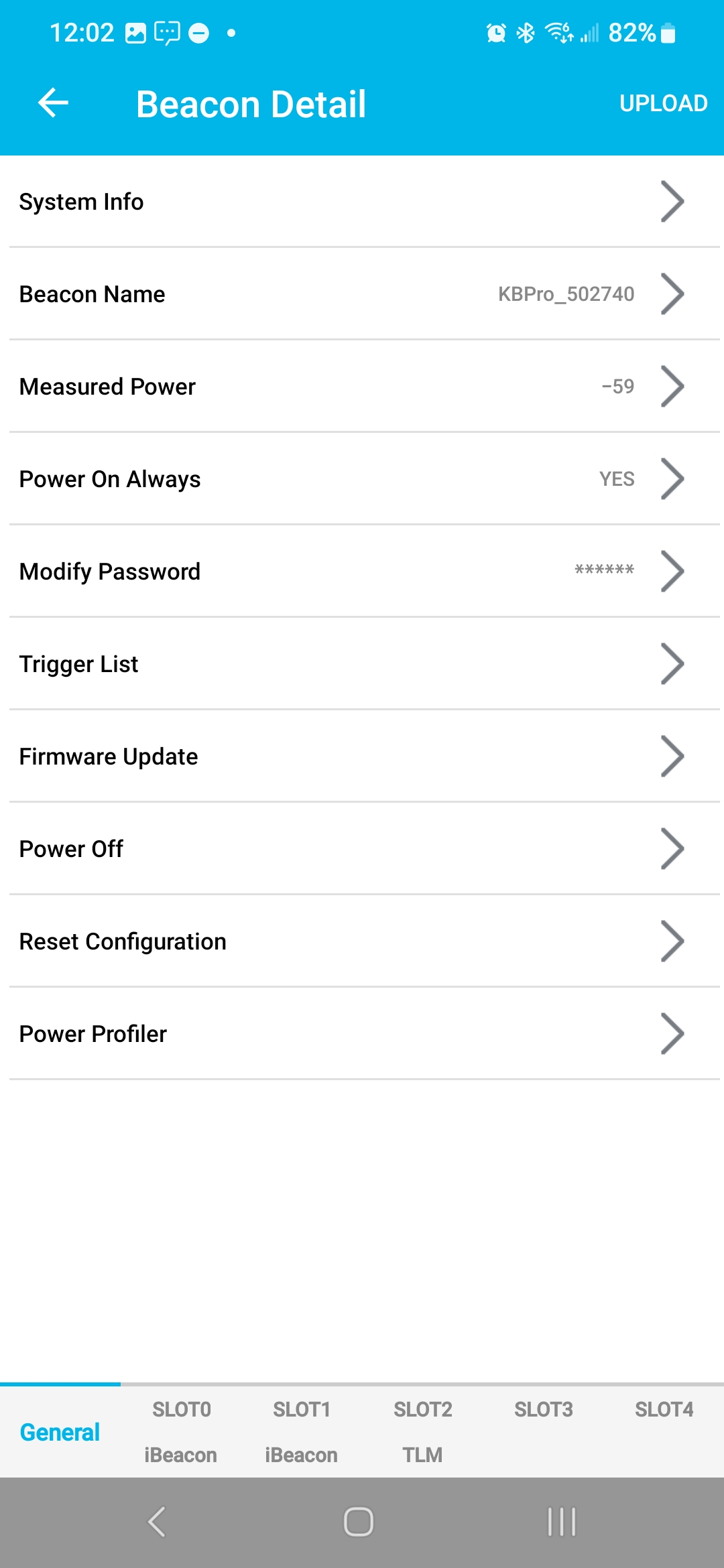

  1. Tap the beacon to open its configuration panel.


    1. NotesNote: The beacon will be offline while the settings are open.

  2. Update any necessary settings.

  1. Press “Upload” to upload changes to the beacon.
