1. Customer Database Management: Configure and maintain databases to ensure optimal performance and feature enablement.

2. Reseller White Labeling: Customize the appearance and branding of the platform to match your reseller's identity through comprehensive white labeling settings, including logos, color schemes, and custom domains.

3. User Management: Efficiently manage user accounts, permissions, and access rights across the platform.

4. Device Management: Monitor and assign devices connected to ZenduONE, ensuring accurate and efficient setup.


Getting started

Setup Stages

In order to add users and devices, it is essential to first set up a company database where these entities will be managed.

Setup Hierarchy:

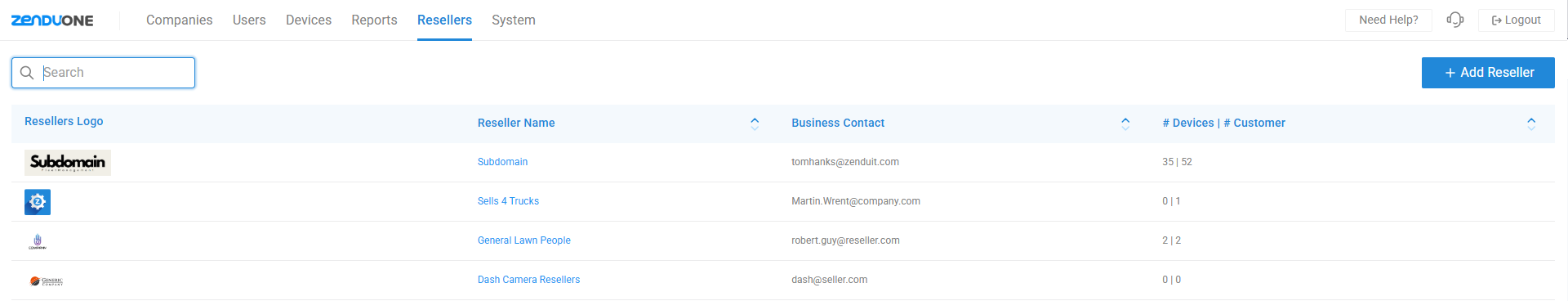

Resellers Module

In certain instances, as a Reseller, you may oversee additional resellers who distribute ZenduONE products under your umbrella. To establish a subordinate reseller, you must create an account for them within the reseller module.

Example of an hierarchy with multiple layers of resellers:

In the following view, it is evident that the reseller “Subdomain” has included another reseller “Reseller Level 2” under their management. This grants "Reseller Level 2" an account for creating companies, users, and devices. Notably, since “Reseller Level 2” operates under the "Subdomain" reseller, "Subdomain" retains the ability to monitor and oversee companies, users, and devices managed by “Reseller Level 2”.

Adding a Reseller

• + Add Reseller – Add a new reseller

Note: By default, the current reseller creating the new reseller will act as the parent in the hierarchy, with the newly added reseller set up as its child account. The child reseller account will not have visibility or access to the parent reseller's companies, users, devices, or other child reseller accounts. However, the parent reseller will have access to the child reseller account's entities.

When a reseller account is created, a corresponding Company account is automatically generated. This Company account sets up a dedicated ZenduONE database for the reseller, allowing them to log in for demos, testing, or training purposes. Additionally, any devices they order or have shipped will be initially assigned to this database, giving them full control to later reassign devices to their customers’ accounts as needed.

Reseller > Account Details

Enter information about the new reseller:

• Account

• Reseller Name

• Email


• Zoho CRM Account ID (If you don’t already have a Zoho Account ID set up with Zenduit for this child reseller, please contact support@zenduit.com to request one)


• Finances

• Currency


• This field displays the currency on file for the reseller account. The selected currency will be used across all billing and invoicing processes within the portal.

• Business Tax ID


• Enter your registered Business Tax ID to ensure it is included in all generated invoices. This helps with tax compliance and financial recordkeeping for your organization.

• Business Address

• The primary address for your business. This may be used on invoices, contracts, and other official documents.

• Billing Address

• The address used for invoicing and financial records. You can check the “Same as Business Address” toggle to automatically copy the business address into the billing address fields.

• Shipping Address

• The address used for order fulfillment and shipments. You can check the “Same as Business Address” toggle to automatically copy the business address into the shipping address fields.

• Contacts

• Use this section like a rolodex, add any relevant personnel or contact information for future reference

Reseller > White Labelling

• Your Customer Portal

• Menu and Login Logo

• Collapsed Logo/Icon

• Login Page Colour

• Button Colour

• Email Sender (SMTP Settings)


Note: If you wish to send emails from your own domain (e.g., support@yourcompany.com), please contact support@zenduit.com. Our team will assist you in configuring your domain and setting up custom SMTP credentials.

Configure SMTP settings to send emails from your own domain, ensuring branded and reliable communication with customers while maintaining compliance and control over email policies.

• Host

• Password

• Port

• No Reply Email

• Username

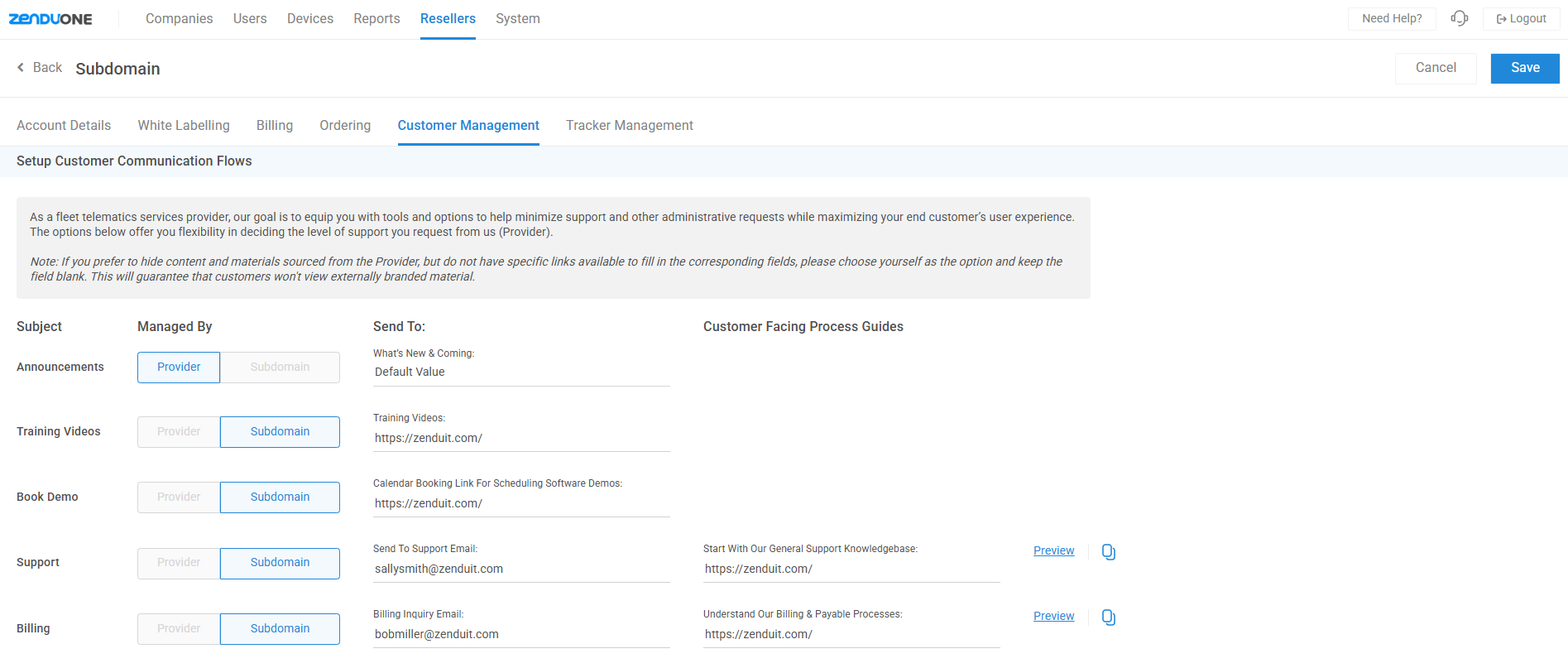

Reseller > Customer Management

• Subject

• These are the various support and resource types that are available to ZenduONE End Customers on their portal.

End Customer Access to Support Module managed by settings of “Customer Management” configurations:

• Managed By

• This toggle specifies who handles support inquiries from end customers, which is currently designated exclusively for management by the resellers.

• Send To

• For the first three subjects ("Announcements", "Training Videos", and "Book Demo"), these should be configured as URL links that direct customers to designated destinations upon selection.

• For the sections below, please set up email addresses where inquiries should be directed. (For instance, support inquiries may need to be directed to a different email address or inbox than billing inquiries from customers.)

• Customer Facing Process Guides

• These fields allow you to link URLs to supporting documentation or resources that you wish to share with customers regarding the various subjects. (For instance, you can include the URL link to a PDF document detailing specific referral processes tailored for your reseller company.)

Note: If a URL is configured for the subject or support type, end users can access it via the "Learn More" hyperlink. If no URL is configured, the "Learn More" hyperlink will not be visible to customers.

1. Preview & Copy Icon

1. Preview - This option provides a view of the standardized form set for the specific subject or support type.

2. Copy Icon - Use this option to copy the form link, which includes your configured email address for that subject type. This enables you to easily share and streamline operational processes with external customers.

Note: The Preview and Copy Icon will only be available if the “Send To” email has been set for that subject or support type.

Reseller > Tracker Management

• Custom Device Integrations


• Smartwitness


• BeWhere


If you have a device that is not currently listed, please contact us to discuss integration options. Custom integrations may be subject to feasibility and could incur additional costs.

Editing/Viewing a Reseller

To edit or view the settings or configurations of a reseller, hover over the corresponding reseller row on the main "Resellers" module table and click to open this reseller record.

Companies Module

A customer cannot access ZenduONE until a company database has been created for them.

Within the "Companies" module, you can create or edit a database to manage users and devices that will affect the customer's tenant experience.

Note: You can consider a "Company" as a "Customer".

Adding a Company

• + Company – Add a new company

Company > Details

Enter information about the new company:

• Company Details

• Account Status

• Company Name

• Reseller

• Industry

• Main Fleet Contact Name

• Main Contact Email

• Main Contact Phone

• Timezone

• Notes

• Shipping Details

• Address

• City

• State

• Postal

• Country

• Shipping Notes

• Contacts

• Use this section like a rolodex, add any relevant personnel or contact information for future reference.

Company > Devices

Note: The "Devices" tab for a Company account will only appear once the Company has been created. This is because devices can only exist within an active ZenduONE database, which is established when the Company account is generated.

• Device Settings

• Total Number of Devices


• This is a count of all devices assigned to this database.

• Default Device Plan for All Devices

• The device plan selected here will automatically appear when a device is added through the ZenduONE customer portal. If only one plan is available for the tracker type, it will be assigned to the device by default. If there are multiple plans available, the default plan will be pre-selected, but customers can choose a different plan if needed. This helps make the process quicker and more consistent for customers.

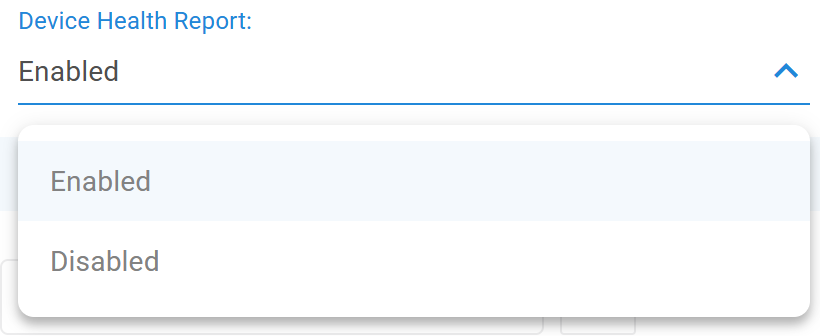

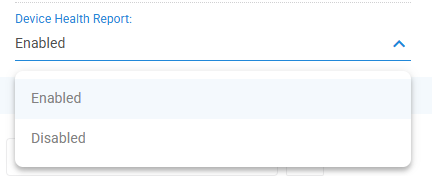

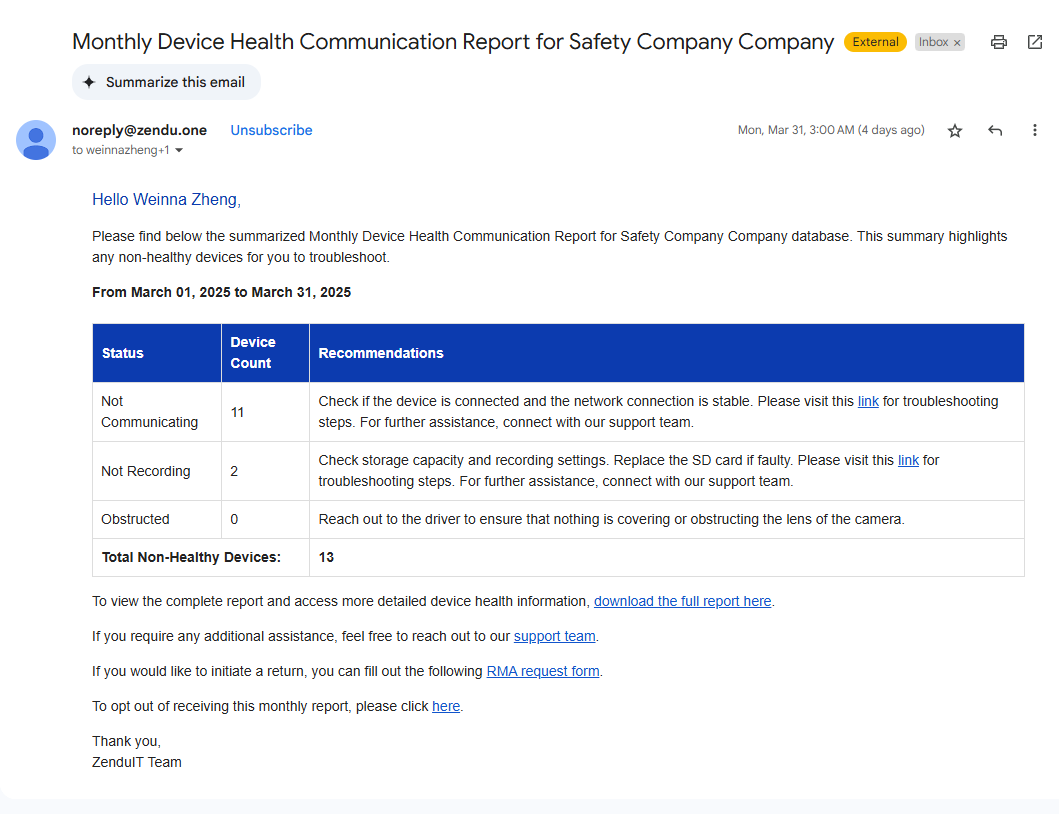

• Device Health Report


• The report provides insights into devices that are actively communicating, not reporting, or disabled, along with troubleshooting recommendations. This helps ensure optimal device performance and proactive issue resolution.


• Enable this to send a monthly summary of device health and connectivity status to all admins in the company database. The report is sent on the 1st of every month.


• If any individual admin user wishes to opt out of receiving this monthly email, they can unsubscribe through the link in the email. This does not affect other admins in the company database.

• Status breakdown:


• Not Communicating: The device is not connecting to our servers. It appears as offline.


• Not Recording: The camera may be online, but it is not storing any video recordings.


• Obstructed: The camera is working, but the lens has been covered by something.

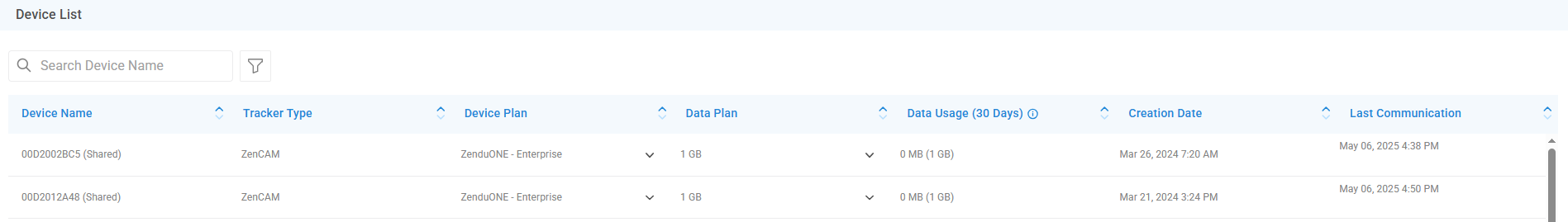

Device List

• Shows details regarding the devices registered within this company or customer database.

• Select on the dropdowns to instantly update the Device or Data Plan for the device.

Company > Plans

• Software Settings

• Software Version

• Monthly SMS Limit (Database)

• Enable Beta Version


• When enabled, all users in the company database will have access to the beta version of ZenduONE, allowing them to explore new features and updates before the official release.

• Software Plan

Here you can view the features included in your software plan, which are determined by your parent reseller or provider (Zenduit).

Company > Integrations

Note: ZenduCONNECT is enabled by default and cannot be disabled.

Integration Setup

Depending on the platform, the setup fields will differ. Some examples of setup fields:

1. ZenduCONNECT [Read-Only]

1. ZenduOne Account ID

2. Zoho Account ID
2. Geotab

1. Geotab Database

2. Geotab Server (non editable)

3. Geotab Username

4. Geotab Password


Below is an example of Geotab integration settings:

1. MQTT

1. MQTT Server
2. MQTT Username
3. MQTT Password

Editing/Viewing a Company

To edit or view the settings or configurations of a company, hover over the corresponding company row on the main "Companies" module table and click to open this company record.

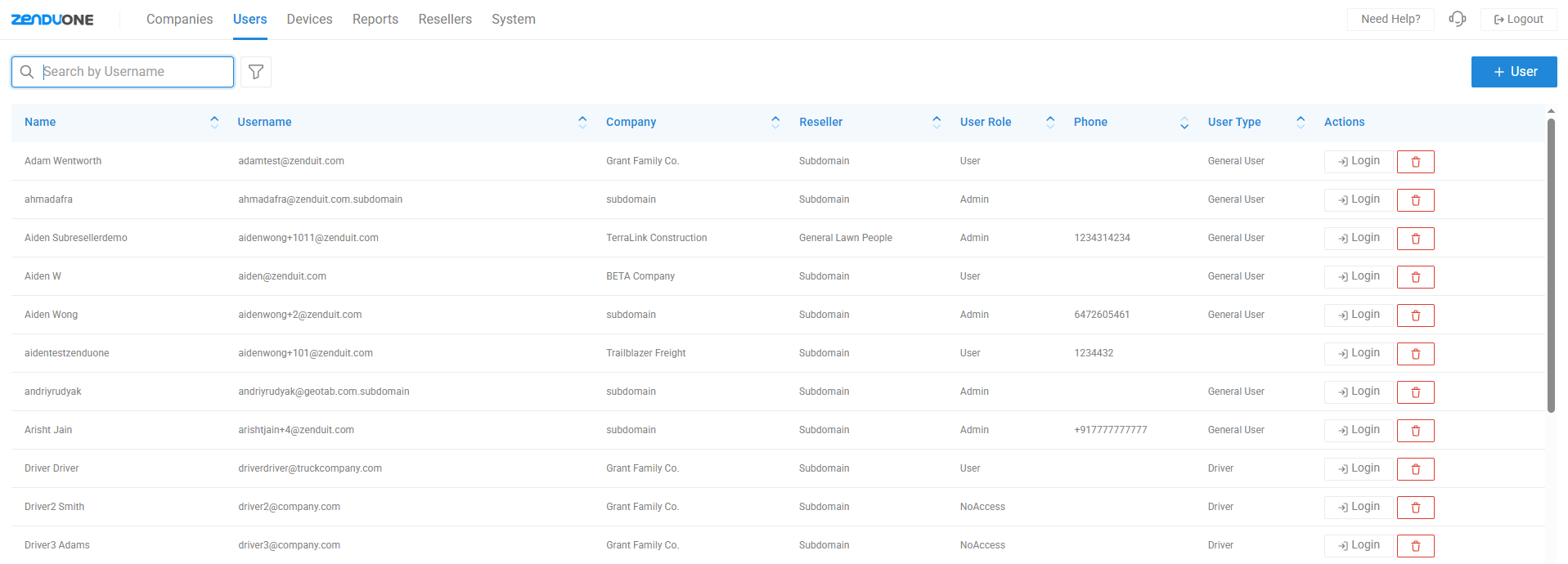

Users Module

Within the "Users" module of the ZenduONE Admin Portal, you can create users within any company or reseller under your parent reseller umbrella. This provides enhanced control over your sub-resellers or customer companies, facilitating efficient support and assistance when needed.

Adding a User

• + User – Add a new user

Enter information about the new user:

• Username --> this should be same as email address

• Email

• Password

• First Name

• Last Name

• Phone Number

• Company


• Reseller [Read-Only]


• User Role

• Admin (Full Access)


• Grants full access to all features and settings within the platform. Admins can manage devices, users, configurations, and view all system data. This role is typically assigned to organization owners, system administrators, or managers who require unrestricted control.

• User (Map & Insights Access Only)


• Provides access to maps and insights, including the ability to view and interact with devices and live data. Users can perform regular day-to-day tasks but may have limited or restricted access to settings and user management based on specific permissions.

• UserNoLiveView (Map & Insights access only with no ability to livestream)


• Same access as a standard User — can view maps and insights — but cannot access live or real-time data such as live tracking or diagnostics. This role is useful for users who focus on historical data, analytics, or reporting without needing real-time visibility.

• Viewer (Map access only with no ability to livestream)


• A read-only role with access limited to viewing maps and reports. Viewers cannot interact with devices, make changes, or access live data. Ideal for roles like auditors, compliance officers, or supervisors who only need observation-level access.

• NoAccess


• A user profile that exists in the system but has no access to the ZenduONE portal. This role is intended for users like drivers or field personnel who are logged in the system for tracking, assignment, or reporting purposes but do not require login access or system interaction.

• User Type


• General User

• Supervisor

• Driver

• Technician

• Passenger

• End Customer


User Types help classify and organize users based on their role or function within the system. They are used for categorization only and do not control or limit access permissions.

• Measurement

• Metric

• Imperial

• Groups


• Use the Groups field to assign a user to one or more organizational groups. Groups help organize users based on departments, locations, teams, or other logical segments. In addition to filtering and reporting, groups also control visibility—users can view only the devices that belong to the same group(s).

• Auto-Generate Password and Send Email with Login Details to User


• Enable this option to automatically generate a secure password and send the user an email with their login credentials.


If this option is not selected and a password is set manually, the system will not send an email. In that case, you will need to share the login details with the user manually.

Editing/Viewing a User

To edit or view the settings or configurations of a user, hover over the corresponding User row and click the pencil icon located on the right.

Logging into ZenduONE as a specific User

In the admin portal, you have the ability to log in to ZenduONE as a specific user directly, without requiring end-user credentials. This grants immediate access for investigating or reviewing specific database or user activities as needed.

To log in as a specific user, hover over their row and click the blue arrow icon located on the right side of the table.

Devices Module

The devices module allows you to view and manage the settings, configurations, and plans associated with each device, ensuring comprehensive control over device management.

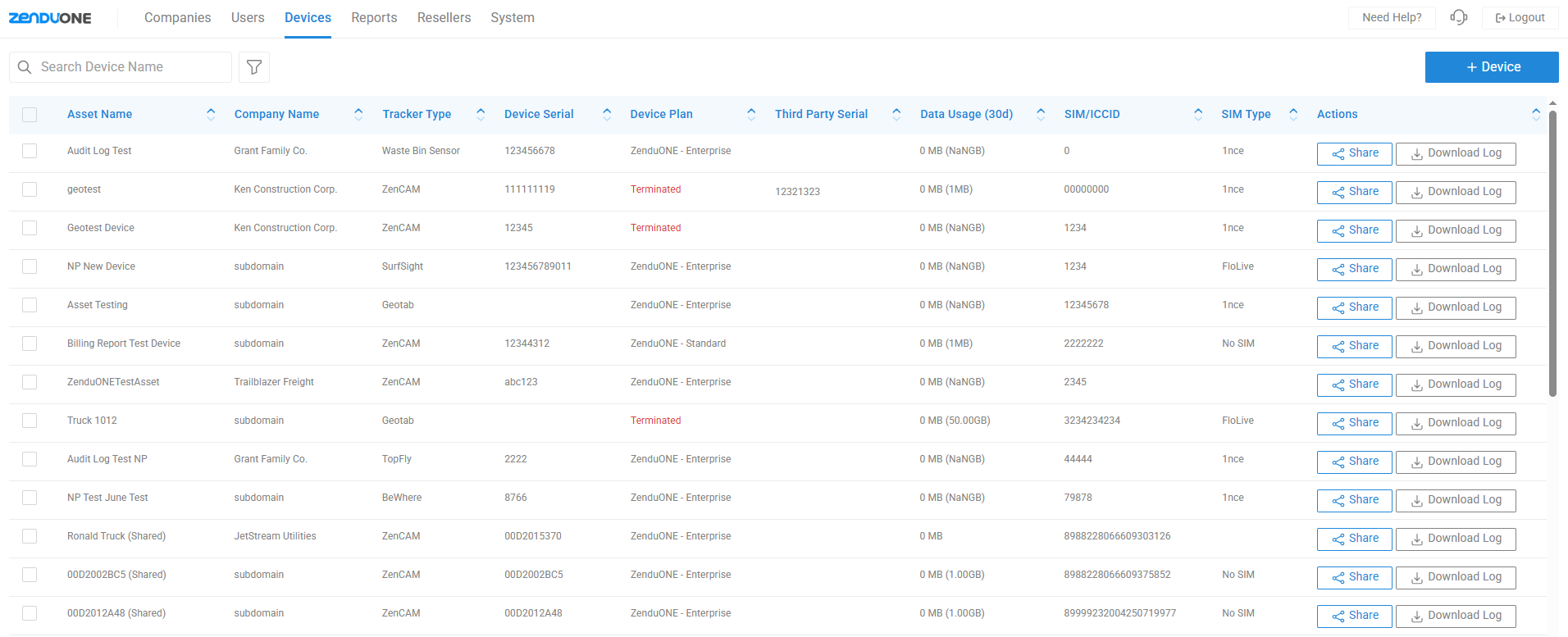

Devices Overview

Actions

• Share

• Share device details and location activity with another Database.


Note: The shared to database will have permission to edit device configurations and view activity.

• Log download

• Excel export of device activity

Adding a Device

• + New Device – Add a new device

Enter information about the new device:

• Details

• Asset name

• Tracker Type

• Company

• Groups

• Third Party Telematics Serial

• Device Serial Number

• SIM Type

• SIM ICCID

• Device Plan


• Custom


• ZenduONE - Standard


• ZenduONE - Enterprise


• Suspended


• Terminated


• Data Plan


Note: If “No SIM” is selected for <SIM Type>, then there will be no SIM ICCID field to populate.

• Device Plan Selection


Here you can view the features included in your selected device plan.

Editing/Viewing a Device

To edit or view the settings or configurations of a device, on the corresponding Device row, select “Edit” under the Actions column.

In this section, you will find four sections - two of which mirror those found in Device creation ("Details" and "Device Plan Selection"). Below these, you will encounter two additional sections:

Note: The timeframe displayed in both the Device Summary and Device Log sections is determined by the date range selected in the Device Log section.

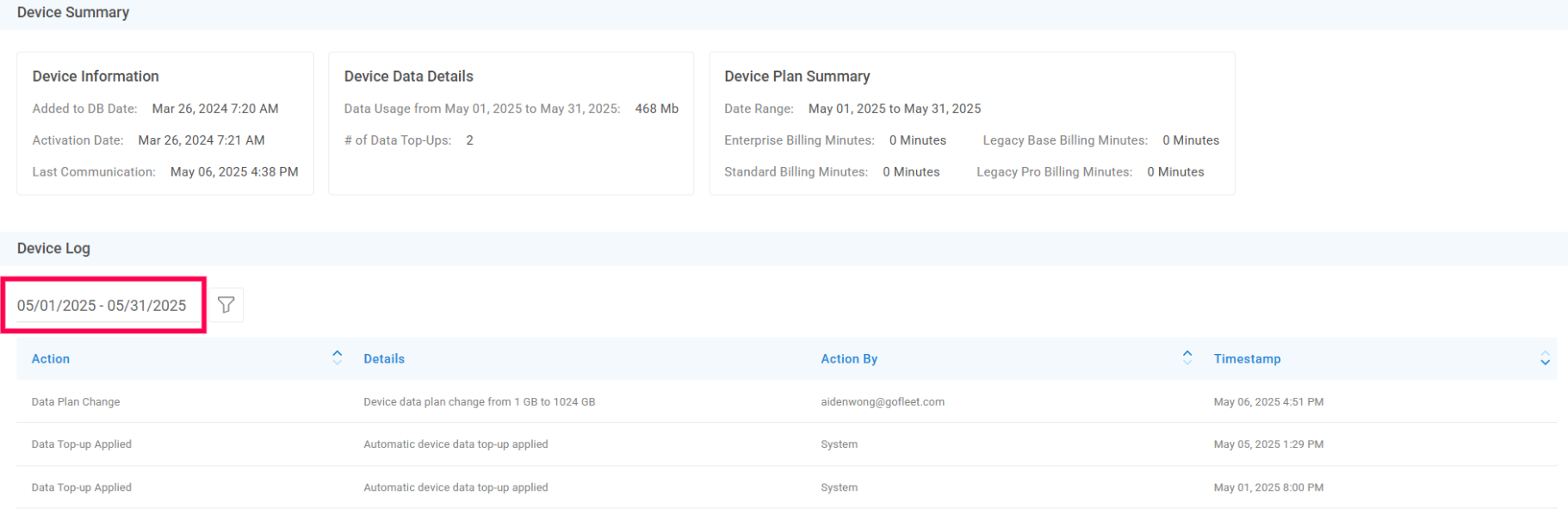

• Device Summary

• Device Information

• Added to DB Date - Date & Time that Device was added to database

• Activation Date - Date & Time that the Device first came online

• Last Communication - Date & Time of last device communication

• Device Data Details - Data Usage (if available depending on SIM Provider)

• Device Plan Summary - Duration that the device remained on each device plan

• Device Log


• The device log provides a comprehensive record of device activities and changes over time, essential for troubleshooting, monitoring performance, auditing modifications, and analyzing usage patterns.

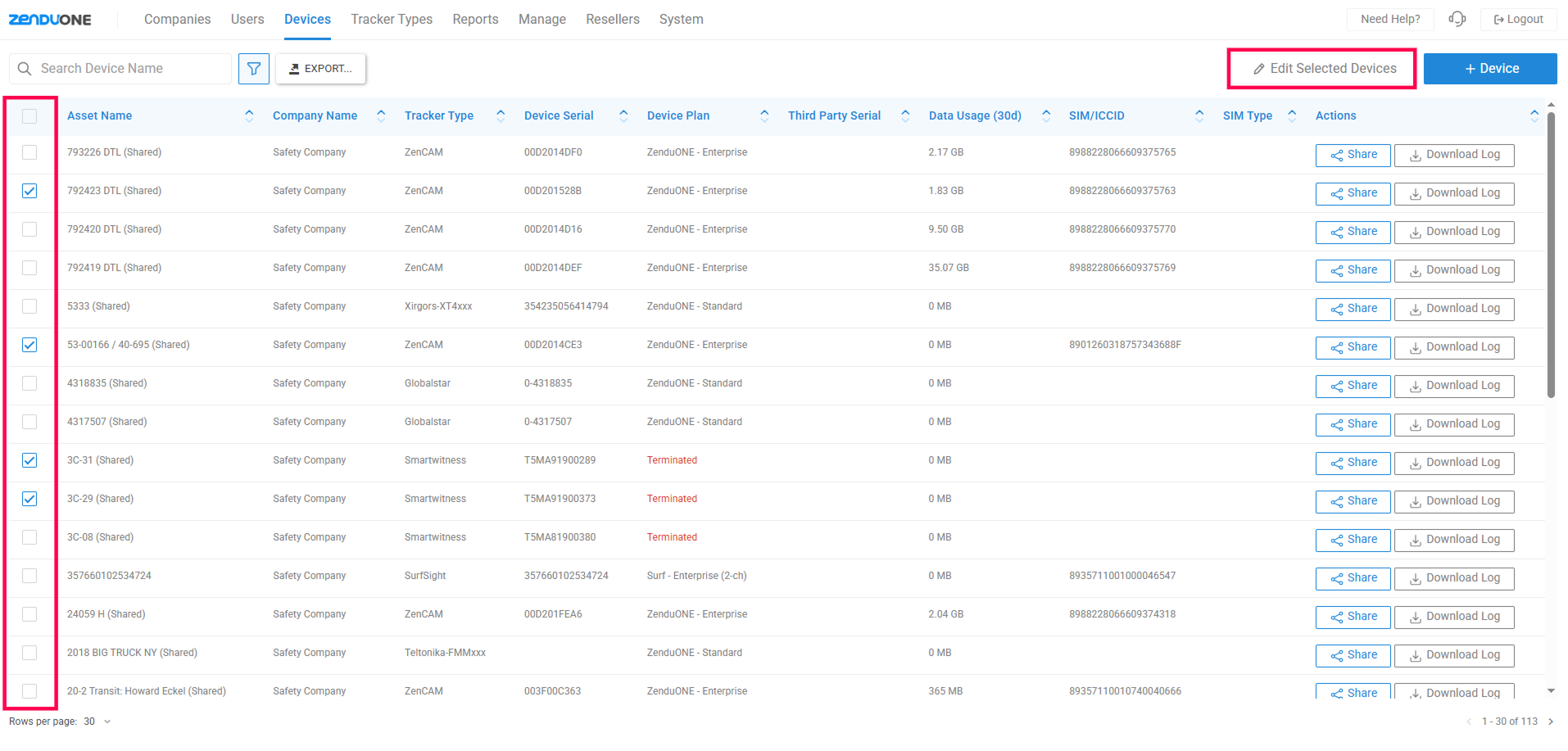

Bulk Editing Devices

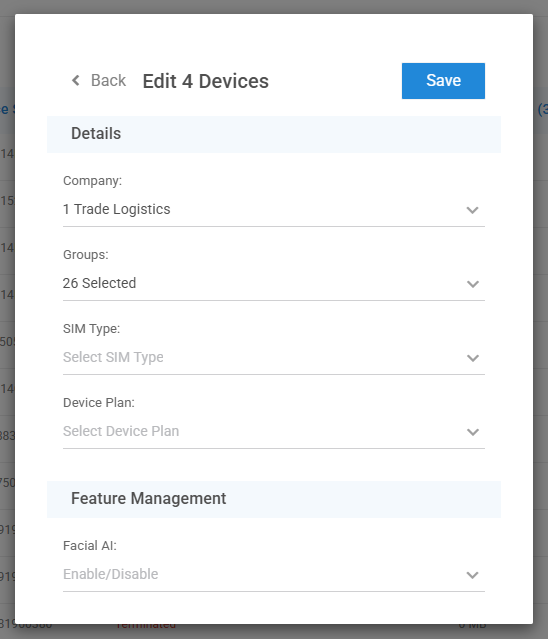

In the popup, set the fields you want to update for the selected devices.

Note: You can only select groups after a company has been selected.

Hit "Save" to update all the selected devices with the new fields you set.

Reports Module

The reports module provides analytics that enable detailed insights into operational performance, user activity, and device utilization. It empowers administrators and resellers to optimize workflows and make informed decisions based on key metrics and trends.

Reports available:

Device Report

• #

• Database

• Customer

• Group

• Tracker Type

• Device Name

• Serials

• Device Last Communicate

• Date Device Add

• Activation Date

• Comment

• Billing Status

Audit Log Report

List of system actions. [Table View only - no excel export] Use Date Picker to view historical actions.

• Action

• Username

• Date


Recordings

List of video exceptions. [Table View only - no excel export]

Removed Device

Provides a table and export of devices removed from the databases

• #

• Database

• Customer

• Tracker Type

• Device name

• DRID

• Date Device Add

• Removing Date

Scheduled Reports

Ability to schedule the following reports:

• Device Add

• Device Add & Removed

• Device Removed

• Devices Consumption

• Quality

Quality

• Customer

• Reseller

• Camera Issues

• Open Tickets
