KnightX - User Manual

ZenTRACK Knight Install





Info
SIM CARD:

The KnightX100 is compatible with SIM cards in the Nano format. To ensure proper operation, make sure that the SIM card's data plan is enabled, that no PIN code is set and that there is sufficient balance. If you plan to use SMS commands to setup the device, make sure the SIM card plan has SMS enabled.

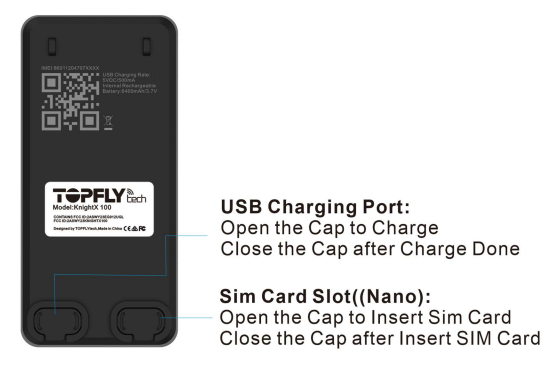

To insert the SIM card, follow the steps below:
  1. Remove the SIM card lid on the bottom of the device
  2. Insert the SIM card following the orientation imprinted on the device
  3. Push it until you hear a click and it is flush with the bottom of the cavity

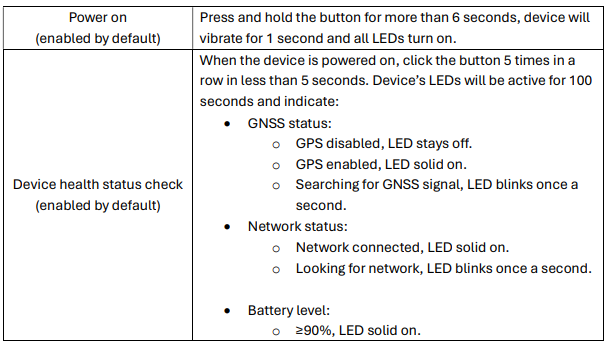

Integrated touch switch function:





Info
Battery charging information:
  1. The minimum recommended charging current is 1A. Lower current chargers are supported but result in longer charging time.
  2. When the battery voltage drops to 3.3V or below, charging the battery is needed to avoid unexpected shutdown due to low power. If the battery runs out completely, please keep the tracker charging for at least 24 hours prior to use.
  3. The device will only accept the power on command if the battery is at 3.4V or more.
