Indoor Tracking Reader Configuration

How to set up a new reader to use with Trax Indoor Tracking.

To configure a new reader:

1. Take a new Bluetooth Gateway Plug Mini reader out of the box and record the MAC ID, located above the QR code on the side of the reader.

2. Plug the reader into a wall socket. You do not need to press the power button, and there will be no light or sound indication that it is working.

3. Connect to the Wi-Fi network ZENDUIT_BLE through your phone.

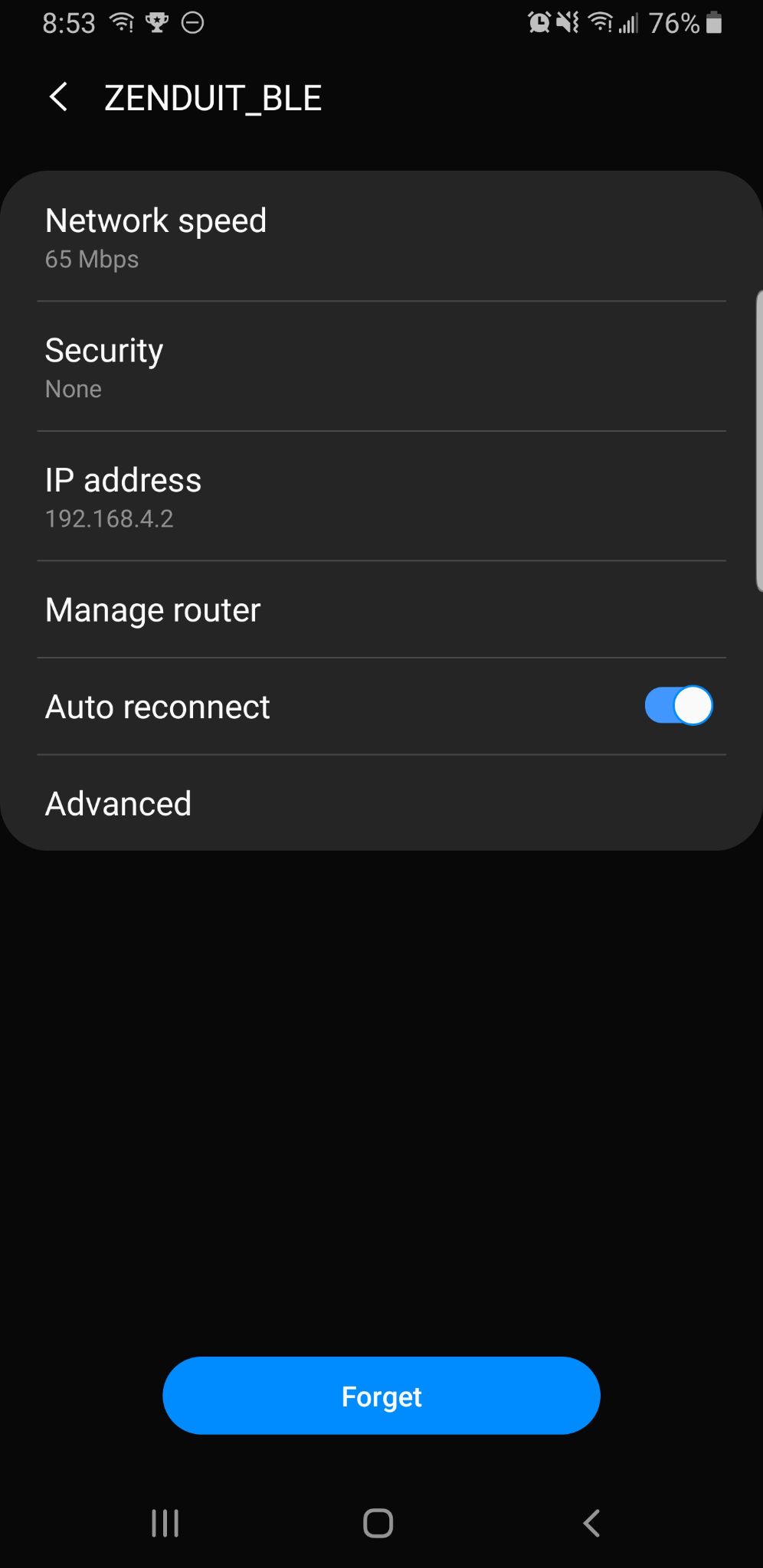

1. Navigate to the network settings or Wi-Fi management tab and then Manage Router. Some possible ways to try are:

1. Click the Wi-Fi network again
2. Advanced Wi-Fi settings
3. Open a chrome or internet browser tab
4. Check your notifications

2. Click Configure WiFi



3. Enter the SSID and password. DO NOT PRESS SAVE YET.

1. SSID:             GoFleet-Wifi
2. Password:         18889981122##



4. Press Save.

1. If you saved a setting wrong or pressed save early, you must factory reset the reader by pressing the power button on the side for 30 seconds, and repeat from the beginning of step 3.
2. If the configuration is done correctly, the reader should have a solid blue light with an occasional green flash.



To add the reader to the Trax database:

1. Add the reader as a device

1. Log into the Trax Admin Portal (https://traxadmin.zenduit.com)

2. Click Devices

3. Click Add

4. Choose “BLE Reader” from the drop down menu under Tracker Type

5. Add the Asset Name, Company, and Groups (optional)

6. Click Add

7. After the reader has been added, find it in the devices list and click Edit

8. Click Advanced Option

9. Enter the MAC ID in the Serial field

10. Click OK

2. Add the reader to a map

1. Log into the database through Trax Admin

2. Click the Admin tab on the top

3. Click Custom Maps

4. Click Edit beside the map you want to add the reader to

5. Click Place Readers

6. Drag your reader from the list on the right and position it on the map

7. Click Save
