ZenTRACK Solar Instllation

Introduction

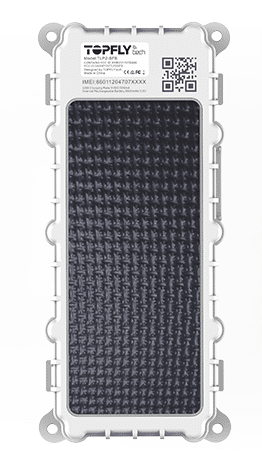

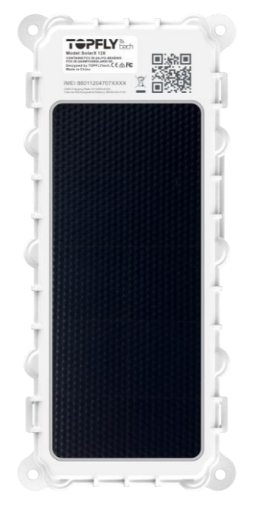

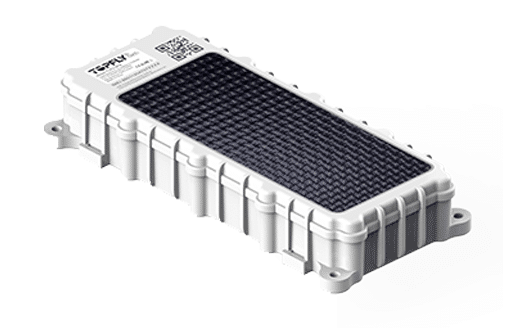

The ZenTRACK Solar Asset Tracker is a powerful and versatile solution for tracking valuable assets in real-time. Designed with cutting-edge GPS technology and robust features, this device ensures continuous asset monitoring in various conditions. Whether you're managing a fleet, securing high-value equipment, or tracking mobile resources, the ZenTRACK Solar (TLP2-SFB) offers reliable performance and ease of use.

What's Covered in this Guide

In this guide, we'll walk you through the steps to activate and install the ZenTRACK Solar, ensuring that your device is set up correctly for seamless tracking. Follow along for detailed instructions, tips, and troubleshooting support to get the most out of your asset tracking system.

Contents:

1. SIM card pre-installation note

2. SIM card installation and tracker power switch

3. Fix screws

4. Installation

1) Installation Steps

1. SIM card data service should be enabled.

2. If SIM card is locked via PIN, please unlock it first.

3. Ensure there is sufficient data in the SIM card.

2)     SIM card installation and tracker power switch

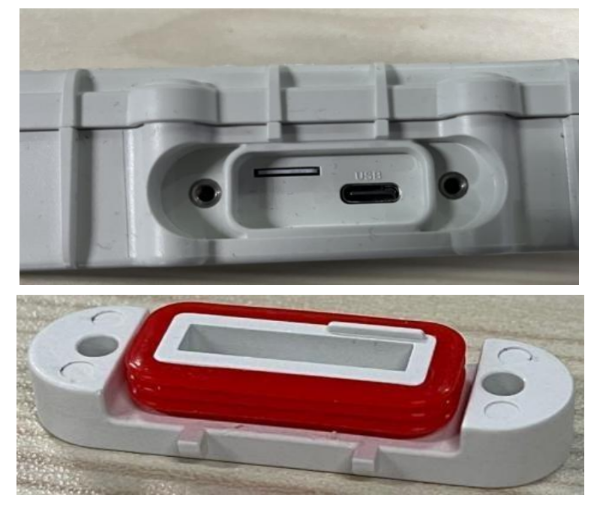

1. Open the tracker SIM card slot cover with the screwdriver.

2. Insert the SIM card with a little push. Turn the power switch from off to on.

3. Put the cover back and use screwdriver to fix the cover tightly.

3) Fix Screws

1. It is VERY IMPORTANT to fix the 2 SIM card cover screws to prevent water from leaking inside and cause damage to device.

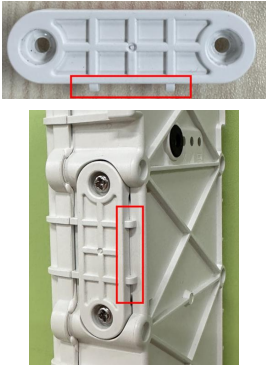

Please note that, the structures on different sides of the cover are different. Therefore, please follow the below photos, to make sure the area highlighted in red toward the bottom of the device, and then tighten the screws after ensuring that it is fully covered.

4) Screwing

1. TOPFLY tech recommend TA51 screwdriver (as an optional accessory to help customer standardize the screw fixing strength). Screw fixing guide below.

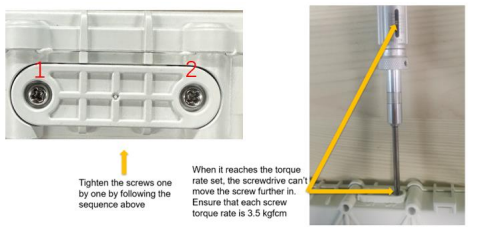

1. Please fix the 2 screws one by one following the sequence below 1-2, using the recommended screwdriver (TA51).

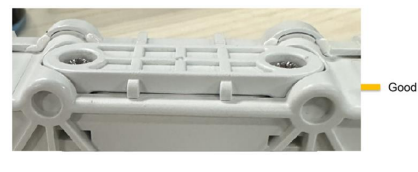

1. Final check, please ensure the cover/lid is fully covered and screws tightened.


Please install away from emission source such as all kinds of sensors, burglar alarm and other communication devices. To avoid any issue.

Queries & Questions

For any issues or further questions, please contact our support team for assistance.
